How to import orders via the Order API
Use this guide to send orders into details via a POST request. This article documents the Order API.
Note: The endpoint expects a JSON array of orders in the request body. Identifiers can be provided as UUID, barcode, or catalog_no. Barcodes must be unique.
Where to find the endpoint

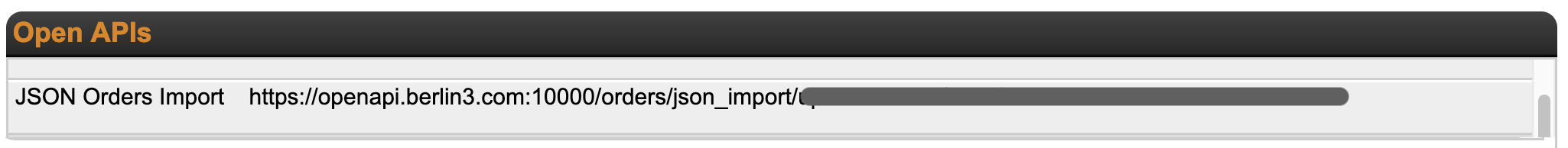

Go to SETTINGS / SHARING and open the open api box named [JSON Orders Import].
Endpoint & URL format
Base URL:
https://openapi.berlin3.com:10000/orders/json_import/Path format (with credentials):
https://api.berlin3.com:10000/api/orders/json_import/<client_id>/<checksum>Quick start
- Generate or locate your <client_id> and <checksum> in SETTINGS / SHARING.
- Build your POST request to the URL format above.
- Set header Content-Type: application/json.
- Send a JSON array of order objects in the request body.
Request parameters
| Parameter | Description | In | Expected Value |
|---|---|---|---|
| client_id | Unique client identifier | path | details client_id |
| checksum | API key | path | details open api key |
| params | Array of orders | body | JSON |
Payload schema (field overview)
Each order is an object. The table below lists available fields. Mandatory fields must be present in every order.
| API Field Name | Mandatory / Optional | Data Type | Expected Value | Field Description |
|---|---|---|---|---|
| order_date | Mandatory | string | YYYY-MM-DD | Date of the order. |
| account_id | Mandatory | integer | min e 1 | Internal ID of the account. |
| contra_account_id | Mandatory | integer | Internal ID of the contra account. | |
| invoice_project_id | Mandatory | integer | Internal ID of the invoicing project. | |
| vat_handling | Mandatory | integer | 1, 2, 3 | 1 = excluding VAT, 2 = including VAT, 3 = no VAT. |
| vat_territory | Mandatory | string | Territory for VAT calculation. | |
| vat_rate1 | Mandatory | number | Primary VAT rate. | |
| vat_rate2 | Mandatory | number | Secondary VAT rate. | |
| orderlines | array | Line items of the order (see fields below). | ||
| shipping_type_id | Optional | integer | Internal ID of shipping type. | |
| order_value | Optional | number | Total order value. | |
| uuid / barcode / catalog_no | Optional | string | Item identifiers. Barcodes must be unique. |
cURL example
curl -X POST
"https://api.berlin3.com:10000/api/orders/json_import/<client_id>/<checksum>"
-H "Content-Type: application/json"
-d '[
{
"order_date": "2015-06-01",
"account_id": 167,
"contra_account_id": 2,
"invoice_project_id": 4,
"currency": "EUR",
"order_type": 1,
"vat_handling": 1,
"vat_territory": "EU",
"vat_rate1": 19,
"vat_rate2": 0,
"orderlines": [
{"uuid": "b1862090-469e-4035-a073-9f106d270502", "ppu": 12.50, "order_qty": 1},
{"uuid": "c796d64c-90c6-493f-a8ea-0f244904069b", "ppu": 10.90, "order_qty": 3}
]
}
]'JSON schema
{
"$schema": "http://json-schema.org/draft-07/schema#",
"title": "import orders",
"description": "import orders from json",
"type": "array",
"items": {
"type": "object",
"required": [
"order_date",
"account_id",
"contra_account_id",
"invoice_project_id",
"currency",
"order_type",
"vat_handling",
"vat_territory",
"vat_rate1",
"vat_rate2"
],
"properties": { /* full property list remains supported */ }
}
}For completeness, the original schema property list from your legacy documentation is preserved below.
Full legacy JSON schema (expanded)
/* Original JSON Schema from your text */
$SCHEMA_BLOCK_START
Sample JSON payload
[{
"status": "Invoice",
"user_id": null,
"currency": "EUR",
"vat_rate1": null,
"vat_rate2": null,
"account_id": 167,
"order_date": "2015-06-01",
"order_type": 1,
"orderlines": [
{"ppu": 12.50, "uuid": "b1862090-469e-4035-a073-9f106d270502", "barcode": "487328472388", "catalog_no": "Detrec 002 CD", "notes": null, "vat_rate": null, "order_qty": 1, "promo_foc": null, "vat_amount": null},
{"ppu": 10.90, "uuid": "c796d64c-90c6-493f-a8ea-0f244904069b", "notes": null, "vat_rate": null, "order_qty": 3, "promo_foc": null, "vat_amount": null},
{"ppu": 11.20, "uuid": "ab96df0f-d94a-44b0-ab63-99340bc778fb", "notes": null, "vat_rate": null, "order_qty": 2, "promo_foc": null, "vat_amount": null}
],
"order_value": 504.50,
"deliver_city": "Subiaco",
"deliver_name": "Andrew Sinclair",
"order_source": "fertig prepaid!",
"vat_handling": null,
"deliver_phone": "+61406213638",
"delivery_text": null,
"one_stop_flag": null,
"proforma_text": "Good Company RecordsnAndrew Sinclairn267 Hay St.nSubiaco - 6008n",
"shipping_date": null,
"shipping_info": null,
"tracking_data": null,
"vat_territory": null,
"internal_notes": "Good Company RecordsnAndrew Sinclairn267 Hay St.nn6008 SubiaconAUSTRALIA",
"order_discount": null,
"shipping_costs": 95.40,
"weight_kg_edit": 17.800,
"deliver_company": "Good Company Records",
"deliver_country": "Australia",
"order_reference": null,
"deliver_address1": "267 Hay St.",
"deliver_address2": null,
"shipping_type_id": 1,
"contra_account_id": 2,
"customs_reference": null,
"payment_method_id": null,
"deliver_postalcode": "6008",
"invoice_project_id": 4,
"deliver_address_type": null,
"deliver_street_number": null
}]Sample response
{"details":"Data is received successfully, for more details please check email.","error":0}Troubleshooting
- 400/422: Check required fields and data types (see mandatory list).
- 401: Invalid <client_id> or <checksum>.
- 500: Retry later; if persistent, contact support@details.eu.
